The Tru-Test MP Series Loadbars are designed for use in a variety of applications, including under platforms, crates and cages. The MP Loadbars can also be easily transproted from site to site. Once you have a firm and level surface, it is a quick and easy task to set them up and begin weighing. Coated to resist corrosion, the loadbars with proved many years of trouble-free service.
The Tru-Test MP600 load bars are by far the most common scales used in a portable/alleyway setup. 4400lb Weighing Capacity - Designed for portable applications such as alleyways, small animal crates and cages - *Not designed for squeeze chute or head gate applications

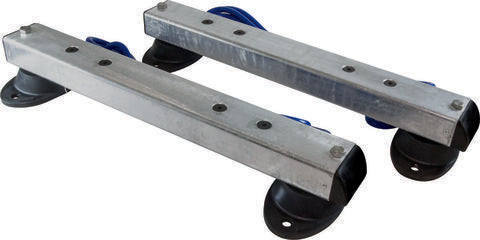

MP600 LOADBARS
Multipurpose MP600 Loadbar Set - 23 inches long - 4400lb capacity.
For portable applications such as the Alleyway Platform AP600, small animal crates and cages. *Not designed for squeeze chute or head gate applications.
Versatile. Can be temporarily installed and when used with the lightweight Tru-Test aluminium platform can be easily transported between different weighing sites.
Compatible. Can be used with any weigh scale in the Tru-Test range without callibration
Corrosion resistant. Galvanised steel housing protects the bar in the tough agricultural environment.
Sealed load cell. Protects the load cell against moisture damage allowing the load bars to remain outside
Easy to set up. Simply requires a firm level surface and a rigid crate or platform
TECHNICAL SPECIFICATION
FOOT PAD DIMENSIONS 6.69 " x 3.94"
CABLE LENGTH 16½'
BAR SECTION WIDTH 3"
CABLE TYPE 4 core cable. TPR inner and conductor cover, PVC middle layer for impact protection, blue TPR outer for protection from sunlight and cold.
LOAD CELL TYPE Aluminium shear beam
STORAGE TEMPERATURE -4 to + 122 °F
OPERATING TEMPERATURE 14.0 to + 104 °F
RESOLUTION Fine mode: 0.2 lb when used with Tru-Test weigh scale indicators Normal: 1 lb.
TOTAL CAPACITY 4,400 lb
NOMINAL LENGTH 23"
ACCURACY ±1% or two resolutions, whichever is greater
