The Tru-Test MP Series Loadbars are designed for use in a variety of applications, including under platforms, crates and cages. The MP Loadbars can also be easily transproted from site to site. Once you have a firm and level surface, it is a quick and easy task to set them up and begin weighing. Coated to resist corrosion, the loadbars with proved many years of trouble-free service.

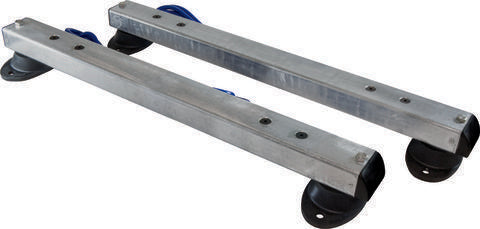

MP800 LOADBARS
Multipurpose MP800 Loadbar Set - 32 inches long - 6600lb capacity.
For portable applications such as the Alleyway Platform AP800, small animal crates and cages. *Not designed for squeeze chute or head gate applications.
Versatile. Can be temporarily installed and when used with the lightweight Tru-Test aluminium platform can be easily transported between different weighing sites.
Compatible. Can be used with any weigh scale in the Tru-Test range without callibration
Corrosion resistant. Galvanised steel housing protects the bar in the tough agricultural environment.
Sealed load cell. Protects the load cell against moisture damage allowing the load bars to remain outside
Easy to set up. Simply requires a firm level surface and a rigid crate or platform
TECHNICAL SPECIFICATION
FOOT PAD DIMENSIONS 6.69 " x 3.94"
CABLE LENGTH 16½'
BAR SECTION WIDTH 3"
CABLE TYPE 4 core cable. TPR inner and conductor cover, PVC middle layer for impact protection, blue TPR outer for protection from sunlight and cold.
LOAD CELL TYPE Aluminum shear beam
STORAGE TEMPERATURE -4 to + 122 °F
OPERATING TEMPERATURE 14 to + 104 °F
RESOLUTION Fine mode: 0.2 lb when used with Tru-Test indicators. Normal: 1 lb
PLATFORM FIXING CENTERS 29.96"
TOTAL CAPACITY 6,600 lb
NOMINAL LENGTH 32"
ACCURACY ±1% or two resolutions, whichever is greater
