For cattle squeeze chutes and high capacity weighing applications.
(Set of 4)
FREE USA SHIPPING!
Designed for specialized weighing uses including manual or hydraulic squeeze chutes (mounted under the chute or suspended above), tilt and rotating chutes, multiple animal platform scales, and other heavy usage applications.

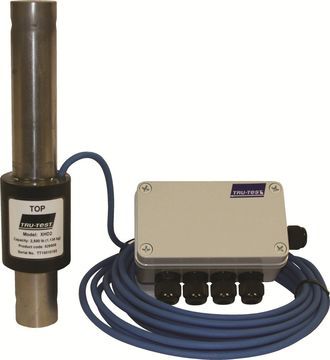

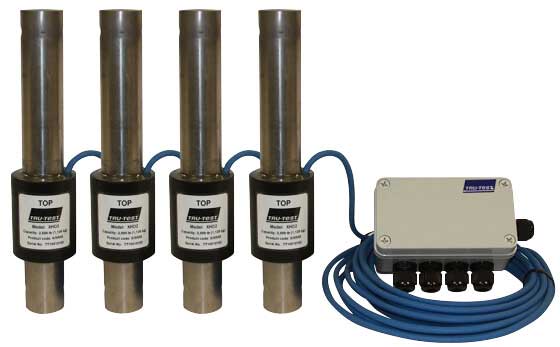

The XHD2 load cell system is ideal for permanent installations under large cattle crushes/chutes where there is high usage. The system includes four 2,500 lb (1,136 kg) load cells with a total capacity of 10,000 lb (4,500 kg). Designed for harsh environments the system is protected to prevent moisture and corrosion damage.
KEY FEATURES
26 foot of cable for set-up flexibility
Load cells individually wired with junction box for easy set-up
Can be used with large platform scales
Fully water, dirt and rodent resistant
Maximum capacity 10,000 lbs
Extra heavy duty plated tool steel
Sealed load cells are also plated for corrosion resistance
Load cell brackets available for select squeeze chute installations
Set of 4
TECHNICAL SPECIFICATION
CABLE LENGTH 26 ft (8 m)
LOAD CELL DIAMETER 1.5 in (38 mm)
CABLE TYPE 4 core cable, TPR conductor cover, blue PU outer
OPERATING TEMPERATURE 14 - 104 °F (-10 to +40 °C)
LOAD CELL LENGTH 11 in (279 mm)
TOTAL CAPACITY 10,000 lbs (4,500 kg)
ACCURACY ±1% or 2 resolutions whichever is greater
